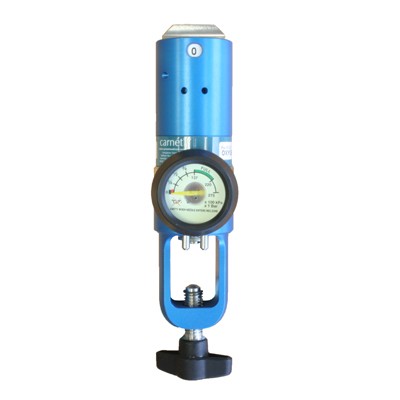

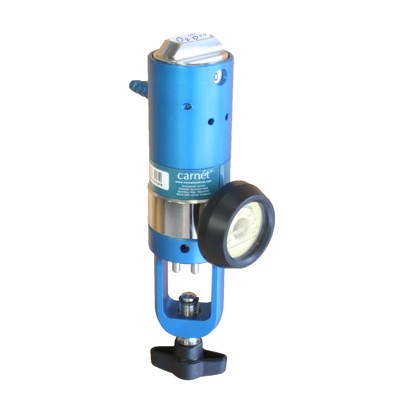

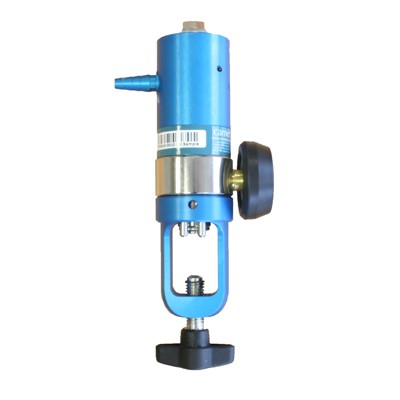

ABOUT Dialflow O2 Regulator O2 Range C 0.1-1.5 l Pin Index/Barb 818-0005
- Description
Dialflow Regulators provide all the benefits of Microdial and Dialflow Meters without the need for a regulated gas supply. Benefiting from a built in state-of-the-art piston style pressure regulator, Dialflow Regulators deliver accurate flow rates from full to near empty gas cylinders.
- Accurate, repeatable standard and micro flow control
- A range of international cylinder connections to suit most gas cylinder valves
- Combination units with pressure and flow ports
- Halogen-free
Device Specifications:
Inlet Connection Pin Index ISO 407 Outlet Connection Barb to EN 13544-2 (6 mm nominal tube) Auxilliary Port None Flow Range 0.1 to 1.5 l/min Inlet Pressure 0.9 to 20 MPa (9 to 200 bar) Standard Discharge (Q1) N/A Maximum flow N/A Inlet filtration 40 µm Orifice Plate Filtration 5 µm Accuracy at nominal pressure +/- 10 % of setting at 1 l/min and above. +/- 20 % of setting below 1 l/min Over pressure valve set point 550 kPa Service Interval 4 years Environmental Limits for Transport and Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F) Humidity: 0 - 100 % RH Environmental Limits for Use Temperature: -20 °C to 60 °C (-4 °F to 140 °F) Humidity: 0 - 100 % RH Applied Standards N/A For other flow ratings please see;
