PRE OWNED Sequal Eclipse 5

PRE OWNED Sequal Eclipse 5
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
Product Code
VAT relief available on this item

£1,650.00 Ex VAT

ABOUT PRE OWNED Sequal Eclipse 5
  • Description

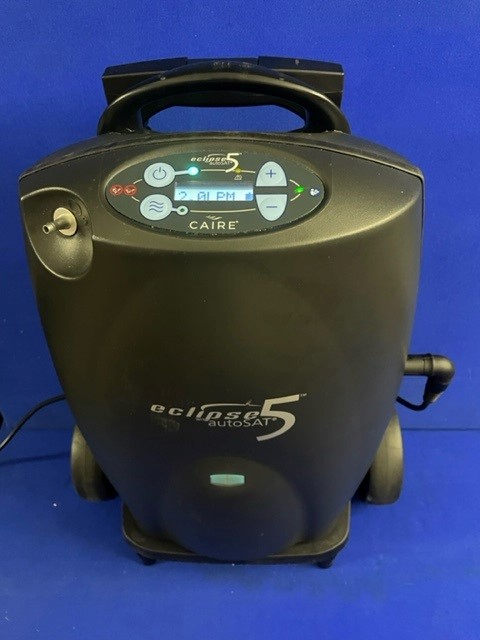

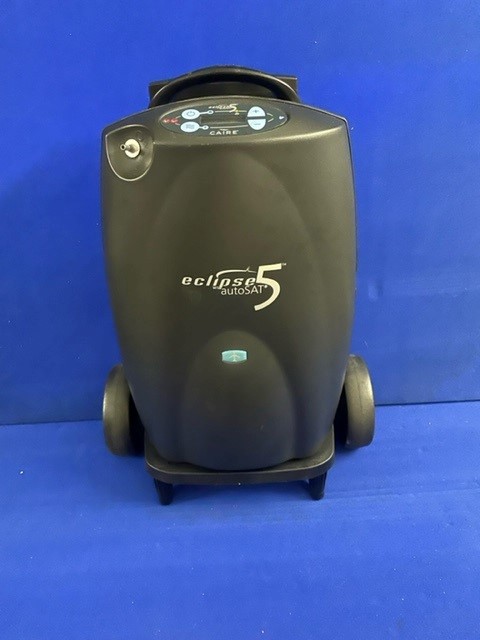

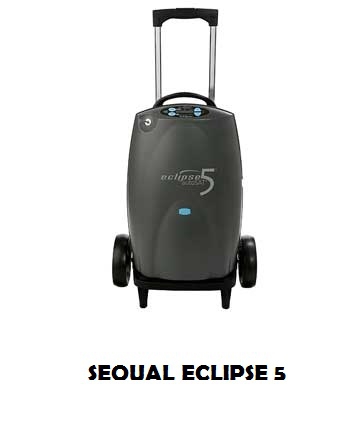

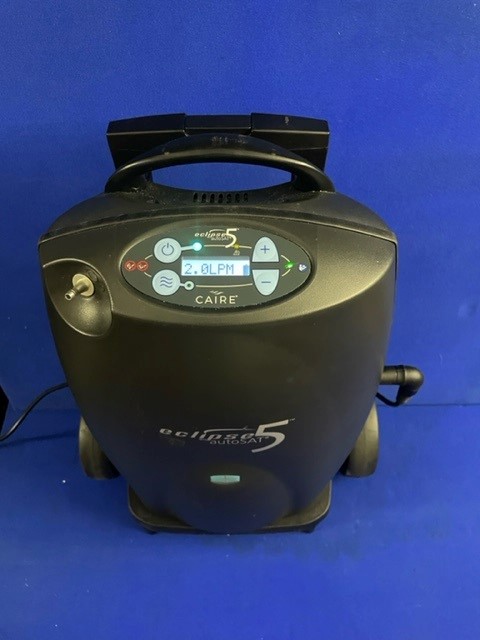

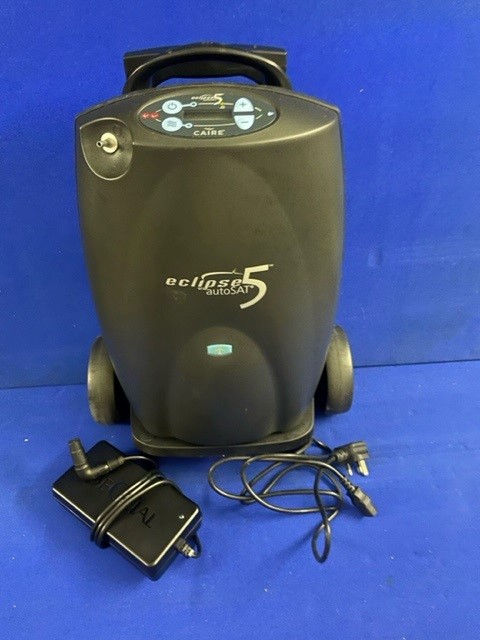

    Pre Owned Sequal Eclipse 5

    All machines have new ATF's (The oxygen production module) and are fully serviced prior to despatch.

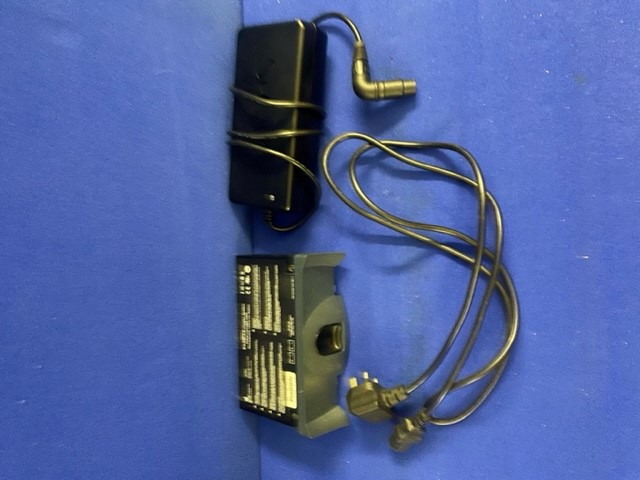

    1 x Battery
    with AC/DC charger
    Accessory Bag

    Each machine will be serviced and fully tested before despatch
    Pre owned machines may have some casing imperfections/scratches, but nothing to detract from the machines operation.

    6 months warranty included - This can be extended to give 12 months warranty for an additional £75.00 (Just add EXTRA6)

    All warranty claims must be shipped back to The Oxygen Store for investigation and repair at the customers expense. Any "no fault found" scenarios will incur a charge of £56.00
    The Oxygen Store can arrange shipping to and from your home for £35.00, however the customer accepts responsibility to ensure the units are packaged adequately for shipping.






    Faa Approved Portable Oxygen ConcentratorVat Exempt


    The Most Robust and Reliable POC on the Market. The new generation of SeQual Eclipse raises the bar for POC performance. The Eclipse 5 features the same benefits that you love about the Eclipse 3, but with next generation internal components that enhance the reliability of the POC. The Eclipse 5 goes where you go, with improved DC power operation that allows for full functionality of the Eclipse 5 when running from DC outlets.  All continuous flow settings, up to 3 LPM, as well as all pulse flow settings, including the largest super setting of 192 mL, are available while operation on DC power. The Eclipse 5 battery will also charge while the unit is connected to DC power, which eliminates any anxiety of failed batteries on long road trips.

    The Perfect O Solution for Low-Mobility Patients: If you’re currently delivering cylinders and have high delivery costs, look no further because Eclipse 5 is the ultimate solution for your patients and your business. Save time and money because cylinder deliveries are eliminated. Most patients not only require oxygen at home, but also on the go – SeQual Eclipse acts as both a stationary and portable unit to meet these needs.

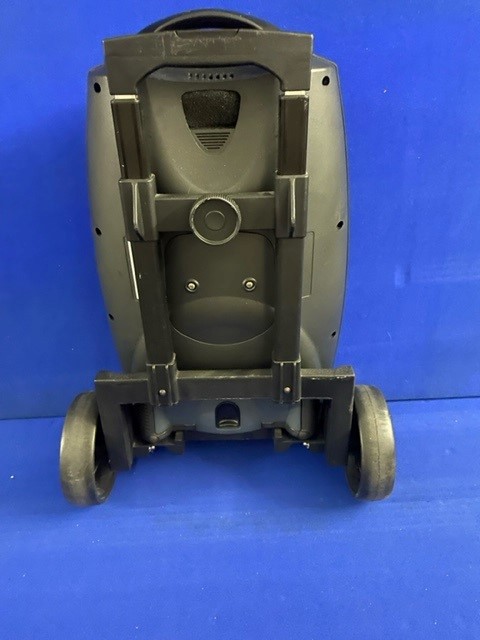

    Some patients have low and limited mobility, but the SeQual Eclipse gives them peace of mind and the freedom to enjoy life at a moment’s notice. Eclipse is lightweight and easy to maneuver by use of the universal cart with telescoping handle. This reliable unit keeps up with the various activities of daily living while providing the individualized oxygen prescription. The SeQual Eclipse is the best solution for patients with higher clinical oxygen needs, but also for those whose ambulatory activities are limited to moving from the house to the car so they can visit the doctor or friends and family.

    This machine comes with a 12 month warranty on the machine and 12 months warranty on the sieve beds and battery.

    This machine has done a total runtime of 416 hours.


                                                            Price Match



    Adjustable Rise Time

    Adjustable rise time allows for longer or shorter oxygen delivery time, providing the same bolus of oxygen volume and accommodating a greater patient population.

    The Eclipse 5 offers three different settings to provide increased patient comfort and address the oxygen needs of different disease states.


    UltraSense® with Adjustable Pulse Sensitivity

    UltraSense is CAIRE’s proprietary technology for sensitive breath detection—helping to ensure patients receive oxygen when needed.

    • Adjustable Pulse Sensitivity allows pulse mode to be used by a wider variety of patients, including patients with weak inspiratory effort who can use a more sensitive setting for more comfortable use

    • Provides quick and reliable oxygen delivery in the “golden third” of inhalation with the most advanced trigger sensitivity on the market today



    autoSAT®: Clinically Proven Oxygen Delivery

    Most portable oxygen concentrators (POCs) deliver a decreased bolus size as the patient’s breath rate increases.

    To compensate with those devices, the user would need to manually increase the setting on the POC to ensure they receive enough oxygen during activity.

    The Eclipse 5’s unique design includes CAIRE’s proprietary autoSAT technology, which maintains a consistent pulse dose volume for every breath as the patient’s respiratory rate changes


    Size                                                                              H x W x D  19.3 x 12.3 x 7.1 (inches), 49.0 x 31.2 x 18.0 (cm)
    Weight                                                                          Eclipse 15 lbs., Battery 3.4 lbs.
    Continuous Flow Settings (measured in LPM)            0.5 to 3.0 LPM (0.5 liter increments)
    Pulse Dose Settings (measured in mL)                       16-96mL, 128mL, 160mL, 192mL
    O2  concentration                                                         90%+5.5%/-3% @ sea level
    O2  output pressure (nominal)                                      5.0 psig (34.5 kPa)
    Sound level                                                                   48 dBA at 3.0 LPM Continuous Flow Mode; 40 dBA at 3.0 Pulse setting

    Power                                                                           AC Power  100-240 VAC, 50-60 Hz, DC Power 12 V nominal

    Battery                                                                         98.9 W-Hr battery pack containing 7.92 gm of lithium content
    Power Consumption                                                   52 watts at 1.0 LPM CF, 145 watts at 3.0 LPM, 45 watts at 1.0 pulse dose, 95 watts at 6.0 pulse dose
    Battery Duration                                                          2 hours (at 2LPM continuous flow); 5.4 hours (pulse at a 2 setting)
    Nominal Battery recharge time                                   1.8 to 5.0 hrs recharge time to achieve 80% capacity (dependent upon the flow)
    Backup Alarm power                                                  9 volt battery
    O2  concentration indicator                                        Green Light=Normal, Yellow=Caution <85%, Red Flashing=Warning <70%
    Operating temperature                                               50ºF to 104ºF (10 ºC to 40ºC) at 82.4º F (28ºC) dew point, non-condensing
    Trigger Sensitivity                                                       Adjustable between -0.135 cm H20 to -0.37 cm H20 (negative pressure)
    Altitude Operating range                                            0-13,123 (0-4,000 meters)
    Alarms/Alerts                                                             Loss of power, Low Battery, Low Therapeutic O2  Output, O2 flow outside normal limits No Inspiration detected in Pulse Dose Mode, Unit Malfunction


    CALL 0345 100 0084 FOR PRICES

  • Specifications
    WeightWeightWeight 18.4 lbs Inc Battery
    DimensionsDimensionsDimensions H x W x D 19.3 x 12.3 x 7.1 (inches), 49.0 x 31.2 x 18.0 (cm)
    Power ConsumptionPower ConsumptionPower Consumption 52 Watts @ 1.0 LPM CF, 95 Watts @ 6.0 LPN Pulse Dose
    CPAP/BIPAP suitabilityCPAP/BIPAP suitabilityCPAP Suitable
    Mains VoltageMains VoltageMains Voltage 100-240 V 50-60 Hz
    WarrantyWarrantyWarranty: Machine - 12 Months, Sieve Beds And Battery - 12 Months
    Flow PulseFlow PulsePulse Dose 4 Settings 16-96 mL, 128 mL, 160 mL, 192 mL
    Flow ContinuousFlow ContinuousContinuous Flow, 0.5 to 3.0 LPM
    Battery LifeBattery LifeBattery Duration, 2 Hours @ 2 LPM CF, 5.1 Hours @ Pulse Setting 2
    Battery Charge TimeBattery Charge TimeBattery Charge Time, 1.8 to 5.0 Hours to 80% Capacity
    Airline ApprovedAirline ApprovedAirline Approved, FAA Approved
    12v DC Option12v DC Option12 V DC Cable Included
    Decibel (Db)Decibel (Db)Decibels, 48 dBA @ 3 LPM CF, 40 dBA @ 3.0 LPM Pulse Dose
    o2 % Mino2 % Mino2 % Min, 90% +5.5%/-3% @Sea Level
    o2 % Maxo2 % Maxo2 % Max, 90% +5.5%/-3% @Sea Level
