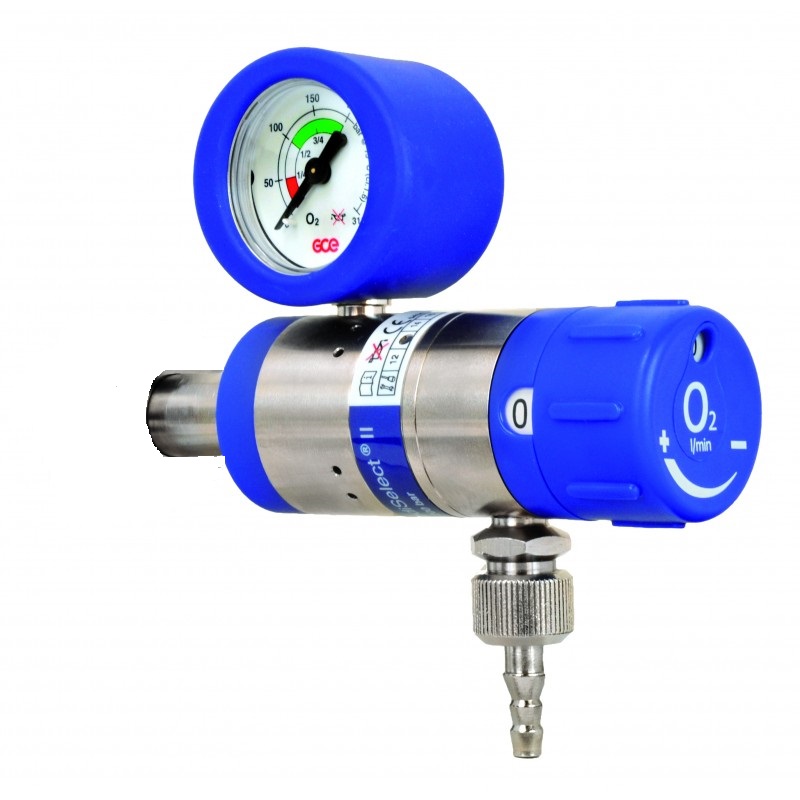

MRI Compatible Mediselect Pin Index Oxygen Regulator 0-25 LPM

Product Code: 0720246
Manufacturer: Bar o2 Limited

£215.00

( £258.00 Inc. VAT )


    ABOUT MRI Compatible Mediselect Pin Index Oxygen Regulator 0-25 LPM

    MRI Compatible Mediselect Pin Index Oxygen Regulator Barb Outlet



    High pressure regulator for use with medical gas cylinders equipped with a medical cylinder valve.  MRI Compatible.

    • Regulator with flow selector. Rotating pressure gauge which allows convenient reading
    • 360° swivelling outlet – it enables better orientation of the nasal cannula or oxygen mask towards the patient (preventing from twisting)
    • Innovative self centering flow setting device with continuous flow between settings. In the unlikely event of indent mechanism failure, the patient will still be supplied by medicinal gas
    • Lateral and frontal reading of flow settings
    • Higher number of flow disc holes increases treatment options. Extra flow setting of 25 l/min on the traditional 15 l/min variant, allows use in resuscitation
    • The additional 7 l/min is intended for nebulization

    Medi-select II Flow Settings (0,1,2,3,4,5,6,7,9,12,15,25 l/min) Pin Index Inlet Connection

    TECHNICAL DATA

    Gas:O2,
    Inlet pressure range:up to 200 bar
    Nominal outlet pressure:4 bar
    Flow ranges*: l/min:0-1-2-3-4-5-6-7-9-12-15-25
    Body material:Nickel-plated brass
    Control knob:Polyamide
    O-rings:EPDM
    Filter:Sintered bronze
    Gauge cover:TPE (thermoplastic elastomer)
    Regulatory status:

    Complies with Medical Devices Directive 93/42/EEC

    Complies with EN ISO 10524-1

    Complies with EN 1789

    Production in accordance with EN ISO 9001
    and EN ISO 13485

    Classification:Class IIb

    * Flowrates expressed at 23°C and 101,3 kPa
