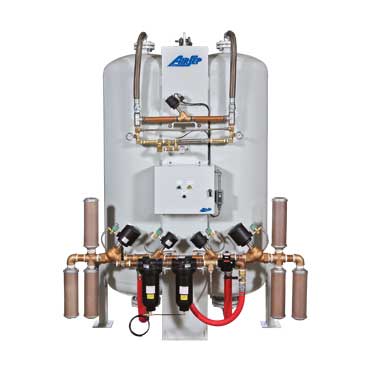

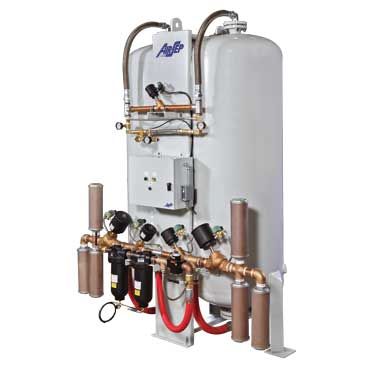

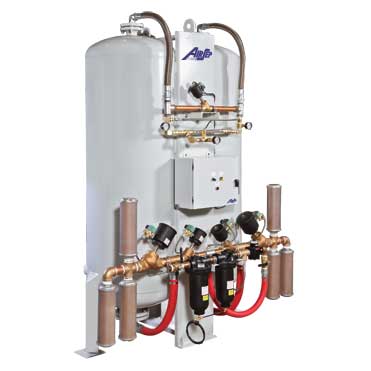

AirSep AS-N Oxygen Generator 1,500-1,800 cufts per hour

AirSep AS-N Oxygen Generator 1,500-1,800 cufts per hour
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
Product Code
AS-N
Manufacturer


CALL FOR PRICE

ABOUT AirSep AS-N Oxygen Generator 1,500-1,800 cufts per hour
  • Description

    AirSep AS-N Oxygen Generators produce 1,500 - 1,800 cubic feet of oxygen per hour at up to 95.5% concentration. Requiring a connection to electricity and a source of compressed air, these reliable machines have low operating costs, and being easy to install and maintain with automatic operation makes this oxygen generator an ideal solution for use with many different applications.



    AirSep AS-N Oxygen Generator

    AirSep AS-N Oxygen Generators produce 1,500 - 1,800 cubic feet of oxygen per hour at up to 95.5% concentration

    Features

    Produces oxygen from an independent compressed air source

    Microprocessor controlled

    Low operating cost

    Automatic and unattended operation

    Easy to install and maintain

    Optional NEMA 4 Touchscreen control panel with integrated oxygen concentration monitor





    Typical applications include

    Medical: Hospital systems

    Manufacturing: Cutting/Brazing/Soldering/Thermal/Chemical Oxidation

    Enviromental: Ozone (Generator) feed gas, environmental remeditation, waste water treatment

    Glass Industry: Glass work, manufacturing, blowing

    Also Fish Farming



    Product Specifications for the AirSep AS-N Oxygen Generator

    Product Flow: 1,500 - 1,800 SCFH (39.43 - 47.32 Nm3/hr or 707 - 849 LPM)1

    Product Pressure: 45-65 psig (310-448 kPa)1

    Product Concentration (nominal): 95% ±1%

    Product Dew Point: -100°F (-73°C)

    Dimensions (W x D x H) (Nominal): 84 x 48 x 110 in (213 x 122 x 279 cm)

    Weight: 4,950 lb (2,245 kg)

    Physical Connections

    Compressed Air Inlet: 1½” FNPT

    Product Gas Outlet:  ¾” FNPT



    Ambient Operating Conditions: Locate the oxygen generator in a well-ventilated area that is protected from weather elements and remains between 40°F (4°C) and 104°F (40°C)



    Feed Air Requirements:

    Clean and Dry “Plant Air” (Class 5.6.5 per ISO 8573.1)
    Pressure: 90 psig (621 kPa) minimum
    Temperature: 122°F (50°C) maximum



    Control Power Requirements (Single Phase): 120 V ~ ±10%, 50/60 Hz, 3.0 A or 220 V ~ ±10%, 50/60 Hz, 1.0 A



    400 Gallon Oxygen Receiver Characteristics

    Dimensions (Dia. x H): 37 x 110 in (94 x 279 cm)

    Weight: 600 lb (272 kg)



    Warranty: 1 year parts and labour



    pdf-iconAS-N cut sheet



    Delivery details: This is a special delivery item, availability is 4-6 weeks from receipt of order



    Please note this is a special order item and cannot be canceled when any order is placed.

  • Specifications
     ItemValue
    FlowFlow1,500 - 1,800 SCFH (39.43 - 47.32 Nm3/hr or 707 - 849 LPM)1
    WeightWeight4,950 lb (2,245 kg)
    DimensionsDimensions84 x 48 x 110 in (213 x 122 x 279 cm)
    Power ConsumptionPower Consumption120 V ~ ±10%, 50/60 Hz, 3.0 A or 220 V ~ ±10%, 50/60 Hz, 1.0 A
    Outlet PressureOutlet Pressure45-65 psig (310-448 kPa)1
    Mains VoltageMains Voltage120 V ~ ±10%, 50/60 Hz, 3.0 A or 220 V ~ ±10%, 50/60 Hz, 1.0 A
    WarrantyWarrantyAn unprotected or inadequately ventilated environment, or improper control power may cause damage to the oxygen generator not covered under warranty.
