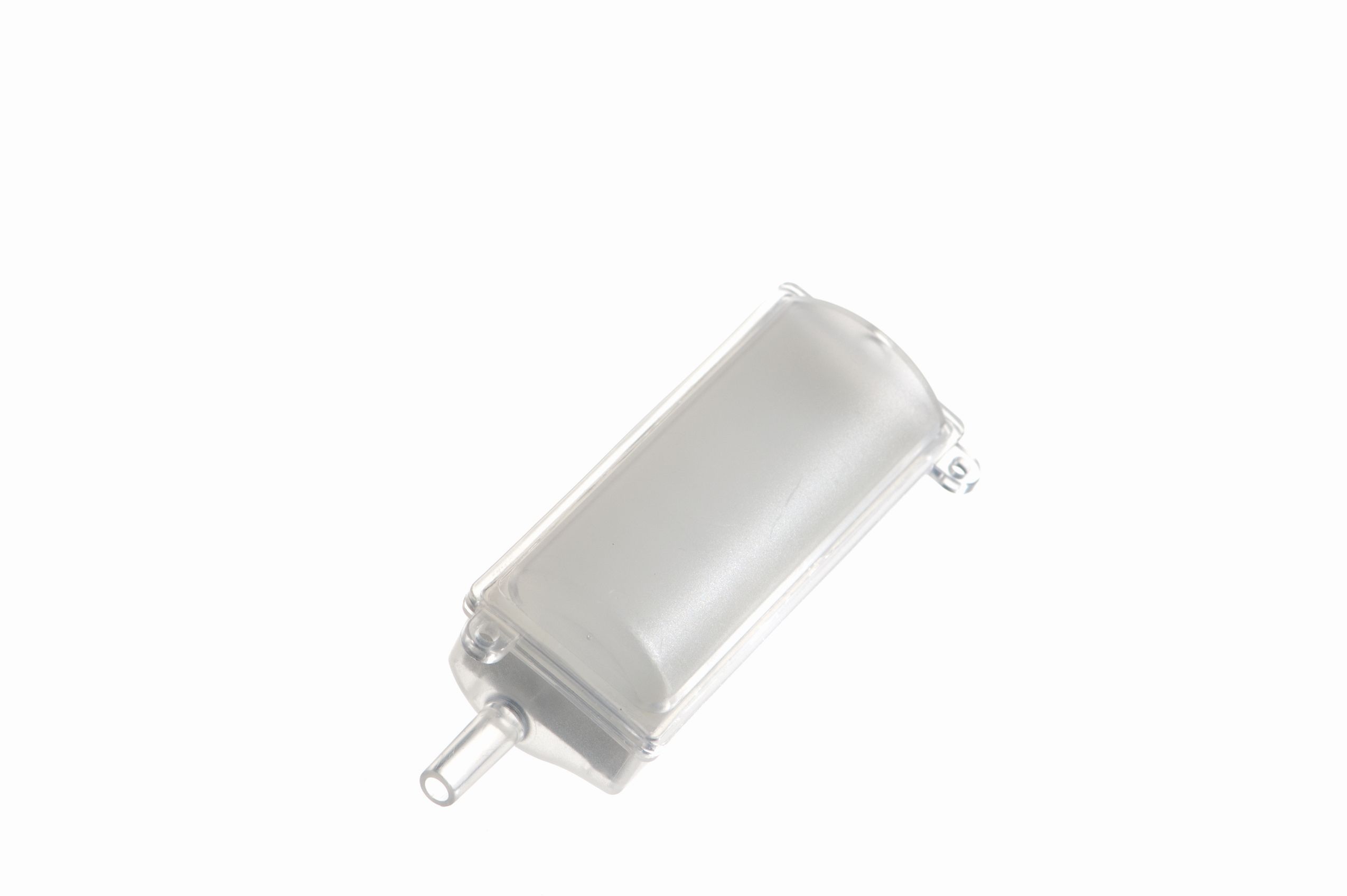

NEW Philips Respironics SimplyGo Inlet Filter kit

NEW Philips Respironics SimplyGo Inlet Filter kit
  • Click to enlarge
Product Code
AG1095248
Manufacturer
Philips Respironics
VAT
VAT relief available on this item

£24.90
£20.75 Ex VAT


ABOUT NEW Philips Respironics SimplyGo Inlet Filter kit
  • Description

    Call 0345 100 0084 For Prices

    faa_approved_portable_oxygen_concentrator

    vat_exempt





    Product Information

    The new SimplyGo Mini portable oxygen concentrator (POC) has the ability  to satisfy patients’ clinical and ambulatory lifestyle needs, whilst providing the ruggedness and reliability for  all medical requirements.
    Featuring a colored and touch-screen responsive control panel, the SimplyGo Mini is both easy and enjoyable to operate. Offering pulse flow settings of 1-5, the SimplyGo Mini is a feature packed POC with a minimal learning curve. Learn how this lightweight POC will improve your oxygen therapy treatment.
    At less than half the size and weight of any other Philips Respironics portable concentrator,  the Simply Go Mini is the smallest and lightest ever developed.
    Weighing in at just 5 lbs with the standard battery and 6lbs with the extended battery.
    Providing two battery options. The  standard battery, which provides  typical duration of up to 4.5 hours; or the extended battery, with a duration of up to 9 hours, this brilliantly designed unit can offer longer periods away from any mains source.
    The intuitive user interface is a LCD touch screen that is easy to use and read. A stylish case is comfortable for all patients to carry by hand or even  over the shoulder.
    For those  patients who prefer a hands-free way to carry their POC, an optional backpack can be purchased, which is  specifically designed for SimplyGo Mini only.

    Whats Included


    • ·  1 x Philips Simply Go Mini device
    • ·  1 x Rechargeable Lithium Ion battery
    • ·  1 x  Carrying case
    • ·  1 x DC Power cord
    •    1 x AC power cord
    • ·  1 x User manual
    • ·· 1 x Cannula and Tubing

    Audible alarms include:

    • No Breath – An alarm will sound if the SimplyGo Mini does not detect a breath, signaling you to insert your cannula and breathe normally. The alarm will silent when the device recognizes a breath.

    • Low Oxygen Concentration – This occurs when the SimplyGo Mini is delivering oxygen at a lower concentration than what is specified. Which is at least 87% on all flow settings.

    • High Breath Rate – This alarm indicates that your breath rate is exceeding the capacity of the SimplyGo Mini.

    • Technical Fault – Two problems can cause this alarm to sound a) the battery runs out or b) the SimplyGo Mini is experiencing a general malfunction that is causing the machine to no longer operate properly.

    • Low Battery – You will hear this alarm when there is approximately 17 minutes of battery life remaining. Telling you to either plug in the AC/DC power supply or swap out for a new fully charged battery.

    • No Flow – An alarm will alert you when the SimplyGo Mini detects there is zero oxygen flowing in through your cannula.

    • Depleted Battery – When there is approximetly 2 minutes of battery life remaining the depleted battery alarm will sound. When you hear this you should immediately plug in the AC/DC power supply or exchange for a new battery.

    • External Power Failure – When using the AC/DC power supply to power or charge your SimplyGo Mini and the machine doesn’t receive any power, the external power failure alarm will sound.


    Technical Specification

    Size with standard battery 9.4 in. x 8.3 in. x 3.6 in(23.9 cm x 21.1 cm x 9.1 cm)
    Size with extended battery 10.2 in x 8.3 in x 3.6 in (25.9 cm x 21.1 cm x 9.1 cm)
    Weight 5 lbs (2.3 kg): with standard battery installed
    Weight 6 lbs (2.7 kg) with extended battery installed

    Charging Duration:

    • 8-Cell Battery – Up to 4 Hours
    • 16-Cell Battery – Up to 8 Hours


    Sound level 43 DBA typical at settings 2 and 20 BPM 46 DBA typical at settings 5 and 20 BPM

    Oxygen At least 87% at all settings concentrations* (maximum of 96%)
    *Based on atmospheric pressure of 14.7 psia (101 kPa) at 70°F (21°C)
    Outlet pressure 20 psig
    Flow settings and pulse volumes
    Setting Nominal Maximum
    pulse volume minute volume at 20 BPM output
    1              11 ml     220 ml/min
    2              22 ml     440 ml/min
    3              33 ml     660 ml/min
    4              44 ml     880 ml/min
    5              50 ml     1,000 ml/min
    +/- 25% or 6 ml, whichever is greater (average of 20 consecutive pulses) over the rated environmental range
    Sound level 43 DBA typical at settings 2 and 20 BPM 4 6 DBA typical at settings 5 and 20 BPM







  • Specifications
     ItemValue
    FlowFlowFlow; 220 ml/min to 1,000 ml/min
    WeightWeightWeight: 5 lbs (2.3 kg): with standard battery
    DimensionsDimensionsDimensions: 9.4 in. x 8.3 in. x 3.6 in (23.9 cm x 21.1 cm x 9.1 cm)
    Power ConsumptionPower Consumption100 - 240 VAC , 50/60HZ , 2.0 A
    Outlet PressureOutlet PressureOutlet Pressure 20 PSI
    CPAP/BIPAP suitabilityCPAP/BIPAP suitabilityCPAP Suitability; Not Suitable
    Mains VoltageMains VoltageMains Voltage; 100–240 VAC, 50/60 Hz
    WarrantyWarrantyWarranty: 3 Years Machine 1 Year Battery and Accessories
    Flow PulseFlow PulsePulse Flow; Setting 1-5
    Flow ContinuousFlow ContinuousContinuous Flow; No
    Battery LifeBattery LifeBattery Duration: Up to 4.5 Hours
    Battery Charge TimeBattery Charge TimeBattery Recharge Time: upto 4 hours
    Airline ApprovedAirline ApprovedAirline Approval; FAA Approved
    12v DC Option12v DC Option12 V DC; Lead Included
    Decibel (Db)Decibel (Db)Decibels: 43 DBA typical at settings 2, 46 DBA typical at settings 5
    o2 % Mino2 % Mino2% Min; 87% oxygen
    o2 % Maxo2 % Maxo2% Max; 96% oxygen
